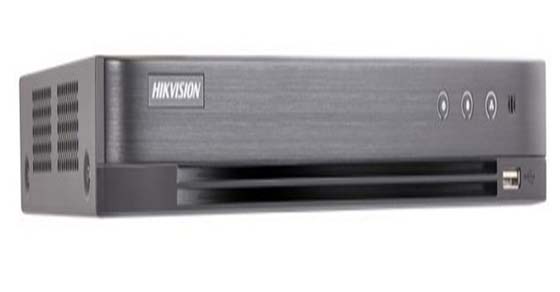

DS-7208HUHI-K2

0 Nhận xét

Thương hiệu: Dòng DS-7200

Mã Sản Phẩm: DS-7208HUHI-K2

Tình trạng: Còn hàng

Giá bán: Liên hệ

Số lượng:

Gọi 02862567168 để được tư vấn và mua hàng

Mô tả
Thông số kỹ thuật
Đánh giá

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

• Connectable to H.265+/H.265/H.264+/H.264 IP cameras

• Up to 5 MP resolution for recording

• HDMI output at up to 4K (3840 × 2160) resolution for DS-7208/7216HUHI-K2

• Long distance transmission over UTP and coaxial cable

• 4/8/16-ch synchronous playback

Video/Audio Input
Audio Input:	\|	4-ch
Video Compression:	\|	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:	\|	4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	\|	Support HDTVI input: 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface:	\|	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	\|	G.711u
Audio Input Interface:	\|	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:	\|	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:	\|	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:	\|	5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:	\|	Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:	\|	32 Kbps-10 Mbps
Stream Type:	\|	Video/Video&Audio
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	\|	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	\|	64kbps
Dual Stream:	\|	Support
Playback Resolution:	\|	5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous Playback:	\|	4-ch
Network management
Remote connections:	\|	128
Network protocols:	\|	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	\|	2 SATA Interfaces
Capacity:	\|	Up to 8 TB capacity for each disk
External Interface
Network Interface:	\|	1; 10M / 100M self-adaptive Ethernet interface
USB Interface:	\|	2 USB 2.0 Interfaces
Serial Interface:	\|	1; standard RS-485 serial interface, half-duplex
General
Power Supply:	\|	12V DC
Consumption:	\|	≤ 10W(without hard disks)
Working Temperature:	\|	-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:	\|	10% to 90%
Dimensions:	\|	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:	\|	≤ 1.16 kg (2.6 lb)
