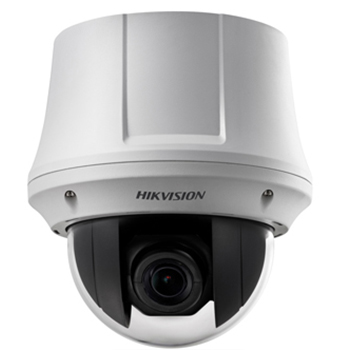

CAMERA PTZ IP TRONG NHÀ 2MP

0 Nhận xét

Thương hiệu: IP PTZ

Mã Sản Phẩm: DS-2DE4220-AE3

Tình trạng: Còn hàng

Giá bán: Liên hệ

Số lượng:

Gọi 02862567168 để được tư vấn và mua hàng

Mô tả
Thông số kỹ thuật
Đánh giá

– Cảm biến 1/2.8’’ CMOS
– Độ phân giải 1080P
– Zoom quang 20X, zoom số 16X
– True Day/Night,
– D WDR , 3D DNR
– Chức năng che vùng bí mật
– Báo động vào/ra
– Định vị thông minh 3D
– Thiếu kế nhỏ gọn
– Nguồn cấp: PoE+/ PoE / 24VAC

Camera
Image Sensor:	\|	1/2.8″ Progressive Scan CMOS
Effective Pixels:	\|	1920(H)x1080(V)
Signal System:	\|	PAL/NTSC
Minimum Illumination:	\|	Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On) B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On)Color : 0.02 lux (F1.6, 1/1 sec,50 IRE, AGC On) B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On)
White Balance:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 52dB
BLC:	\|	ON/OFF
HLC:	\|	Support
Smart defog:	\|	Support
WDR:	\|	Support
Shutter Time:	\|	1/1-1/10,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16X
Privacy Masking:	\|	2 privacy masks programmable
Auto Focus:	\|	Auto / Semi-automatic / Manual
Lens
Focal Length:	\|	4.7-94mm, 20x
Zoom Speed:	\|	Approx.3s (Optical Wide-Tele)
Angle of View:	\|	58.3 ~ 3.2 degree (Wide-Tele)
Minimum Working Distance:	\|	10 ~1000mm (Wide-Tele)
Aperture Range:	\|	F1.6 ~ F3.5
Pan & Tilt
Pan Range:	\|	360°endless
Pan Speed:	\|	Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°/s
Tilt Range:	\|	Tilt: 0°~90°
Tilt Speed:	\|	Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	300
Patrol:	\|	8 patrols, up to 32 presets per patrol
Power loss recovery:	\|	Support
Park Action:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:	\|	ON/OFF
Freeze Frame:	\|	Support
Alarm
Alarm Input:	\|	1
Alarm Output:	\|	1
Alarm Actions:	\|	Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	\|	1 Audio output interface Line level, impedance: 600Ω
Network
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	\|	1920×1080
Frame Rate:	\|	50Hz: 25 fps (1920×1080), 25 fps (1280×720); 60Hz: 30 fps (1920×1080), 30 fps (1280×720
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 2 areas with adjustable levels
Audio Compression:	\|	G.711ulaw/G.711alaw/G.726/MP2L2
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Dual Stream:	\|	Support
Mini SD Card:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
EZVIZ:	\|	Support
Client GUI
Camera Control:	\|	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language:	\|	English / Chinese
Power Supply:	\|	-AE3: 24VAC/PoE(802.3af)
Power Consumption:	\|	Indoor: 12W max
Working Temperature/Humidity:	\|	-AE3: -10°C ~ 50°C (14°F ~ 122°F) 90% or less
Protection Level:	\|	IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ179.4×239.5mm (Φ7.06”×9.43”)(outdoor) Φ165×179.5mm(Φ6.50”×7.07”) (ceiling) Φ165×168mm(Φ6.50”×6.61”) (In-ceiling)
Weight (approx.):	\|	Approx. 2Kg (4.41Ibs)
Mount Option:	\|	Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
