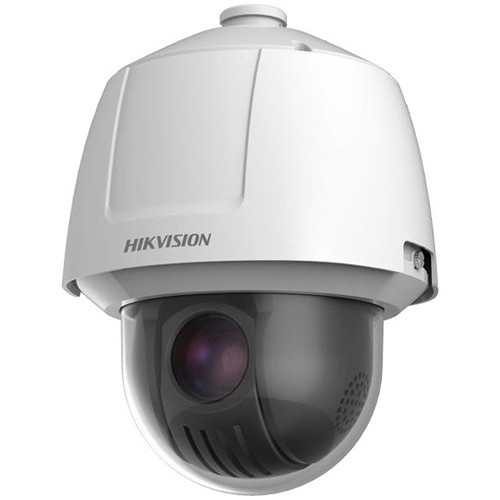

PTZ SMART CAMERA ULTRA-LOW LIGHT 2MP

0 Nhận xét
Thương hiệu: IP PTZ
Mã Sản Phẩm: DS-2DF6223-AEL
Tình trạng: Còn hàng
Giá bán: Liên hệ
Số lượng:
Gọi 02862567168 để được tư vấn và mua hàng

• 1/1.9” HD CMOS sensor
• 2MP(1920*1080) Full HD
• 23X Optical Zoom
• Ultra-low illumination
• 120db True WDR
• Smart Tracking
• Smart Detection
• EIS (Electronic Image Stabilization)
• Defog
• Hi-PoE / 24VAC power supply

Camera
Image Sensor: | 1/1.9″ HD CMOS sensor
Effective Pixels: | 1920(H)x1080(V)
Signal System: | PAL/NTSC
Minimum Illumination: | F1.5, AGC On: Color: 0.002 lux, B/W: 0.0002 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
Smart defog: | Support
WDR: | 120dB
Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 5.9-135.7mm, 23x
Zoom Speed: | Approx.4.8s(Optical Wide-Tele)
Angle of View: | 59.8-3.0 degree (Wide-Tele)
Minimum Working Distance: | 10-1500mm(Wide-Tele)
Aperture Range: | F1.5~F3.4
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range: | -15°-90° (Auto Flip )
Tilt Speed: | Tilt Manual Speed: 0.1°-240°/s,
Tilt Preset Speed: 400°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets per patrol
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan /



Panorama scan

PTZ Position Display: | ON/OFF
Freeze Frame: | Support
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/



Region entrance trigger/ Region exiting trigger
Smart tracking when patrol between multiple scenarios

Alarm
Alarm Input: | 7 Inputs
Alarm Output: | 2
Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output,



Notification on Client

Input & Output
Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: | 1 channel Mic. Input (applicable microphone, plug-in power type), 2.0~2.4Vp-p,



1k Ohm±10%

Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 1920×1080
Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream: | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Third Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576),



25fps (352×288), 25fps (176×144)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720), 30fps(704×480),

30fps (352×240), 30fps (176×120)

Image Compression: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
ROI encoding: | Support 24 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS,



NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users: | Up to 20 users
Three-Stream: | Support
Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,



preset calling and programming, auto mode

Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: | English / Chinese
Power Supply: | 24 VAC & Hi-PoE
Power Consumption: | Max.60W
Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: | IP67, IK10, TVS 4,000V lightning protection, surge protection and



voltage transient protection

Mounting: | Various mounting modes optional
Dimensions: | Φ178.3(mm)×331.0(mm) (Φ7.02”×13.03”)
Weight (approx.): | 8kg (approx.)
Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
