Camera Module
Image Sensor:	\|	1/1.9″ progressive scan CMOS
Min. Illumination:	\|	ƒ/1.5, AGC on: color: 0.002 lux, B/W: 0.0002 lux
Max. Image Resolution:	\|	1920 × 1080
Focal Length:	\|	5.7 mm to 205.2 mm, 36x
Digital Zoom:	\|	16x
Zoom Speed:	\|	Approximately 3.3 s (optical wide to tele)
Angle of View:	\|	58.7° to 2.0° (wide to tele)
Min. Working Distance:	\|	10 mm to 1500 mm (wide to tele)
Aperture Range:	\|	ƒ/1.5 to ƒ/3.4
Focus Mode:	\|	Auto/semiautomatic/manual
WDR:	\|	120 dB
S / N Ratio:	\|	≥55 dB
Shutter Time:	\|	1 s to 1/30,000 s
AGC:	\|	Auto/manual
White Balance:	\|	Auto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp
Day & Night:	\|	IR cut filter
Privacy Mask:	\|	24 privacy masks programmable; optional multiple colors and mosaics
Enhancement:	\|	3D DNR, EIS, HLC/BLC, SVC
Pan and Tilt
Range:	\|	Pan: 360° endless; tilt: -15° to 90° (auto flip)
Speed:	\|	Pan manual speed: 0.1° to 300°/s, pan preset speed: 540°/s, tilt manual speed: 0.1° to 240°/s, tilt preset speed: 400°/s
Number of Preset:	\|	300
Patrol:	\|	8 patrols, up to 32 presets per patrol
Pattern:	\|	4 patterns, with the recording time not more than 10 minutes per pattern
Park Action:	\|	Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan
Scheduled Task:	\|	Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan/dome reboot/dome adjust/aux output
Smart Features
Smart tracking:	\|	Manual/panorama/intrusion trigger/line crossing trigger/region entrance trigger/region exiting trigger
Smart detection:	\|	Intrusion detection, line crossing detection, audio exception detection, region entrance, region exiting
ROI encoding:	\|	Supports 24 areas with adjustable levels
Alarm
Alarm I/O:	\|	7/2
Alarm Trigger:	\|	Intrusion detection, line crossing detection, region entrance, region exiting, motion detection, audio exception detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Alarm Action:	\|	Preset, patrol, pattern, microSD/SDHC card recording, relay output, notification on client, send e-mail, upload to FTP, trigger channel
Input/Output
Monitor Output:	\|	1.0 V[p-p]/75 Ω, NTSC composite, BNC
Audio Input:	\|	1 mic in/line in interface, line input: 2 to 2.4 V[p-p]; output impedance: 1 K Ω, ±10%
Audio Output:	\|	1 audio output interface, line level, impedance: 600 Ω
Network
Protocols:	\|	10Base-T/100Base-TX, RJ-45 connector
Simultaneous Live View:	\|	Up to 20 users
Mini SD Memory Card:	\|	Supports up to 128 GB microSD/SDHC/SDXC card, supports Edge recording
User/Host Level:	\|	Up to 32 users, 3 levels: administrator, operator, and user
Security Measures:	\|	User authentication (ID and PW); host authentication (MAC address); IP address filtering
System Integration
Application programming:	\|	Open-ended API, supports ONVIF, PSIA , CGI, and ISAPI
Web Browser:	\|	IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, supports multi-language
RS-485 Protocols:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power:	\|	Hi-PoE and 24 VAC, maximum 60 W
Working Temperature:	\|	-40° C to 65° C (-40° F to 149° F)
Humidity:	\|	90% or less
Certification:	\|	FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN60950-1
Dimensions:	\|	Φ178.3 mm × 331.0 mm (Φ7.02″ × 13.03″)
Weight (approx.):	\|	~8 kg (~17.64 lbs)

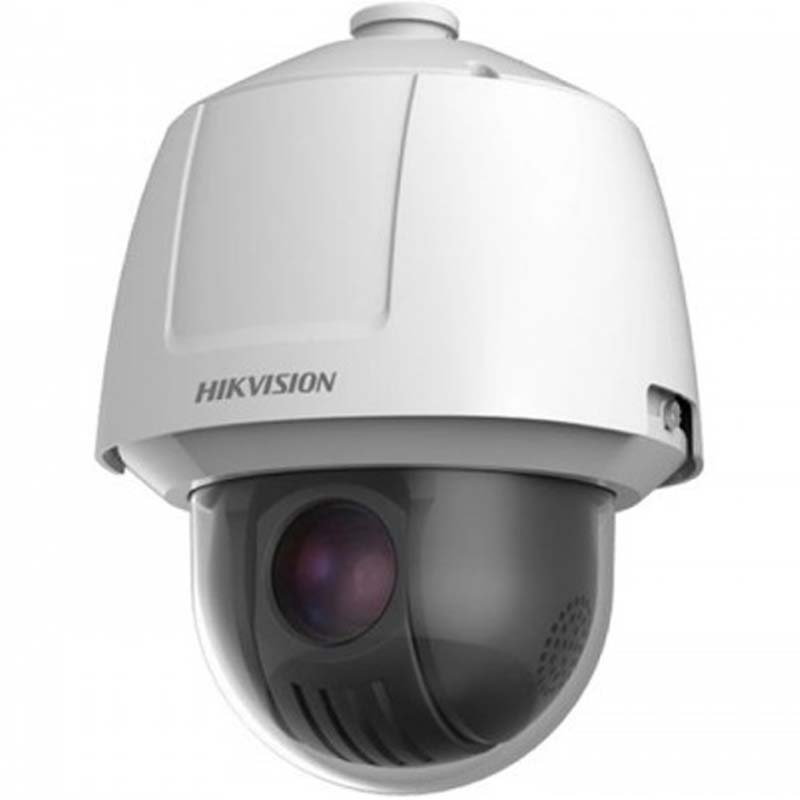

PTZ SMART CAMERA DARKFIGHTER 2MP
