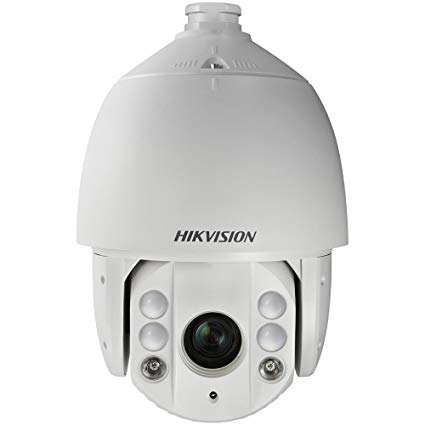

CAMERA PTZ IP 1MP

0 Nhận xét
Thương hiệu: IP PTZ
Mã Sản Phẩm: DS-2DE7174-A
Tình trạng: Còn hàng
Giá bán: Liên hệ
Số lượng:
Gọi 02862567168 để được tư vấn và mua hàng

– Cảm biến 1/3″ CMOS
– Zoom quang 20X, Zoom số 16X
– Tầm xa hồng ngoại 100m
– Định vị thông minh 3D.
– DWDR, 3D DNR, BLC
– Chức năng cài đặt vùng bí mật
– Chống sương mù
– Định vị thông minh 3D
– Tiêu chuẩn ngoài trời IP66
– Nguồn cấp: 24 VAC(for –A model )

Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Effective Pixels: | 1280(H)x960(V)
Signal System: | PAL/NTSC
Minimum Illumination: | Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On)
B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On)
0 lux with IRColor : 0.02 lux (F1.4, 1/1 sec, 50 IRE, AGC On)
B/W : 0.002 lux (F1.4, 1/1 sec, 50 IRE, AGC On)
0 lux with IR
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
S/N Ratio: | ≥ 52dB
BLC: | ON/OFF
HLC: | Support
Smart defog: | Support
WDR: | Support
Shutter Time: | 1-1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 2 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 4.7-94mm, 20x
Zoom Speed: | Approx.3s(Optical Wide-Tele)
Angle of View: | 58.3-3.2 degree (Wide-Tele)
Minimum Working Distance: | 10-1000mm(Wide-Tele)
Aperture Range: | F1.4- F3.5
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Pan Manual Speed: 0.1°-160°/s,
Pan Preset Speed: 240°/s
Tilt Range: | -15°-90° (Auto Flip )
Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets per patrol
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan /



Panorama scan

PTZ Position Display: | ON/OFF
Freeze Frame: | Support
Infrared
IR irradiation distance: | 100m
IR irradiation angle: | Adjustable by zoom
Alarm
Alarm Input: | 2
Alarm Output: | 1
Alarm Actions: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP,



email linkage

Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 1280×960
Frame Rate: | 50Hz:25fps(1280×960), 25fps (1280×720)
60Hz:30fps(1280×960), 30fps (1280×720)
Image Compression: | H.264 / MJPEG
ROI encoding: | Support 2 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS,



DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: | User authentication (ID and PW), host authentication (MAC address)
EZVIZ: | Support
Client GUI
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,



preset calling and programming, auto mode

Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language: | English / Chinese
Power Supply: | 24 VAC(for –A model ), 24 VAC/Hi-PoE(for -AE model)
Power Consumption: | Max. 30W(IR LED On)
Max. 21W(IR LED Off)
Working Temperature/Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor)
90% or less
Protection Level: | IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and



voltage transient protection

Mounting: | Various mounting modes optional
Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor)
Weight (approx.): | 4.5kg(9.92Ibs)
Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
